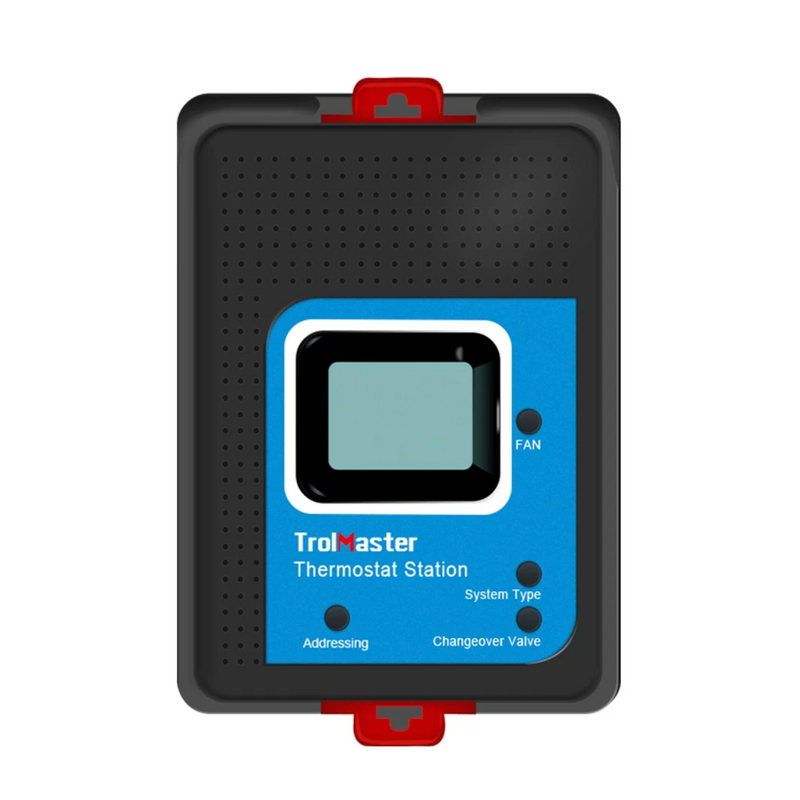

Thermostat Station for Hydro-X System (TS-2)


Price:
$ 119

Description

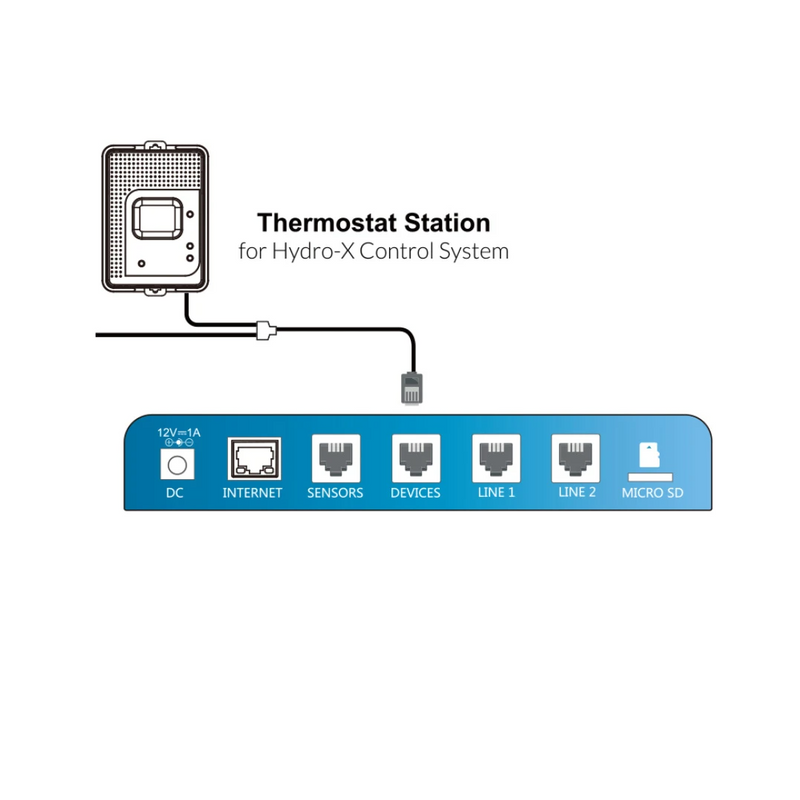

The TS-2 thermostat stations is designed to replace a thermostat connected to a standard HVAC unit. The TS-2 can be used to control most HVAC systems including heat pump and multi-stage HVAC systems. The  TS-2 is wired to the HVAC system using the same low-voltage thermostat cable, and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS  modules, so multiple HVAC systems can be controlled by a single Hydro-X system. The TS-2 also has an adjustable delay time for each HVAC systems being activated. That minimizes high start-up (inrush current) and allows up to 4 HVAC systems to be safely controlled.

Features:

  • LCD Display, Easy Operation
  • Seamless Connection with Hydro-X
  • Micro-SD for Firmware Upgrade
  • Address Assignment
  • Plug & Play

Specifications:

Output Voltage:                                        24V

Maximum Current:                                   1A

Working Environment:                           Temperature 32-122°F, Humidity≤90%

Packaging Dimensions:                          160mm(L) x 86mm(W) x 86mm(H)
